Optical switch

광 스위치는 광통신 네트워크 상에서 광신호를 선택적으로 전환하여 전송하는 통신 장치이다. 켐옵틱스의 광 스위치는 insertion loss가 적고 넓은 파장영역과 낮은 cross talk 특성 및 가격 경쟁력 있는 제품입니다.

Product List

  • 2X2 Optical switch for KT wireless optical repeater
  • 2X2 full function Optical switch
  • 1X4 Optical switch
  • 1X8 Optical switch

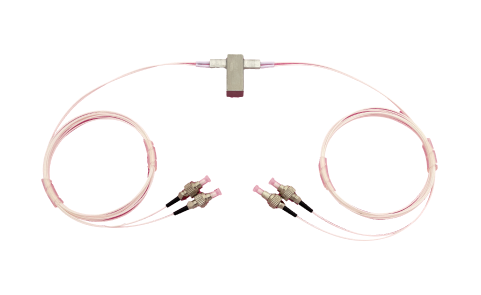

2X2 Optical switch for KT wireless optical repeater

Features
  • Low insertion Loss
  • Wide wavelength range
  • Low crosstalk
  • Epoxy free on Optical path
  • Excellent environmental reliability
Applications
  • WDM system(KT wireless optical repeater)
  • OADM
  • MAN(Metropolitan Area Network)
Specifications
Parameters Unit FSW-2×2A
Wavelength Range nm 1260 ~ 1650
Test Wavelength nm 1310 /1550
Insertion Loss 1, 2 dB Type:0.8 Max:1.0
Return Loss 1, 2 dB SM ≥ 50
Crosstalk 1 dB SM ≥ 55
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0  or  5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm (L)55×(W)26×(H)10.8 ±0.2 or Customer design

· Note: 1 Within operating temperature and SOP.

· 2Excluding Connectors.

2X2 full function Optical switch

Features
  • Low insertion Loss
  • Wide wavelength range
  • Low crosstalk
  • Epoxy free on Optical path
  • Excellent environmental reliability
Applications
  • WDM system(KT wireless optical repeater)
  • OADM
  • MAN(Metropolitan Area Network)
Specifications
Parameters Unit FSW-2×2F
Wavelength Range nm 1260 ~ 1650
Test Wavelength nm 1310 /1550
Insertion Loss 1, 2 dB Type:0.8 Max:1.0
Return Loss 1, 2 dB SM ≥ 50
Crosstalk 1 dB SM ≥ 55
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0  or  5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Weight g 16
Dimension mm (L)28.3×(W)12.0×(H)8.5 ±0.2 or Customer design

· Note: 1Within operating temperature and SOP.

· 2Excluding Connectors.

1X4 Optical switch

Features
  • Low insertion Loss
  • Wide wavelength range
  • Low crosstalk
  • Epoxy free on Optical path
  • Excellent environmental reliability
Applications
  • WDM system(KT wireless optical repeater)
  • OADM
  • MAN(Metropolitan Area Network)
Specifications
Parameters Unit FSW-1×4
Wavelength Range nm 850±40 / 1310±40 850±40 or 1310±40 1260~1650
Test Wavelength nm 850 / 1310 1310/1550,1260~1360,1510~1610
Insertion Loss 1, 2 dB  Max:1.4
Return Loss 1, 2 dB MM ≥ 35  SM ≥ 55
Crosstalk 1 dB MM ≥ 35  SM ≥ 55
PDL dB ≤0.1
WDL dB ≤0.30
Repeatability dB ≤±0.02
Operating Voltage V 3.0  or  5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤10
Optical Power mW ≤500
Operating Temperature ℃ 0 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm (L)26.0×(W)25.5×(H)10.3 or Customer design

· Note: 1Within operating temperature and SOP.

· 2Excluding Connectors.

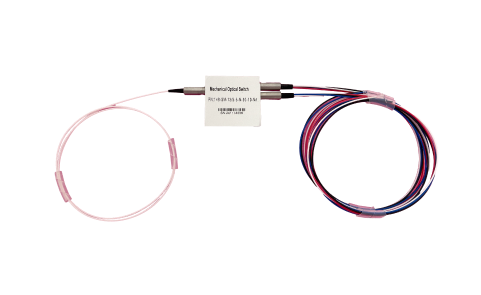

1X8 Optical switch

Features
  • Low insertion Loss
  • Wide wavelength range
  • Low crosstalk
  • Epoxy free on Optical path
  • Excellent environmental reliability
Applications
  • WDM system(KT wireless optical repeater)
  • OADM
  • MAN(Metropolitan Area Network)
Specifications
Parameters Unit FSW-1×8
Wavelength Range nm 850±40 ,1310±40 0r 1550±40 1260~1650
Test Wavelength nm 850 / 1310 1310/1550,1260~1360,1510~1610
Insertion Loss 1, 2 dB  Max:1.4
Return Loss 1, 2 dB MM ≥ 35  SM ≥ 50
Crosstalk 1 dB MM ≥ 35  SM ≥ 55
PDL dB ≤0.2
WDL dB ≤0.30
Repeatability dB ≤±0.05
Operating Voltage V 3.0  or  5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤15
Optical Power mW ≤300
Operating Temperature ℃ 0 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm (L)36.0×(W)34×(H)11 or Customer design

· Note: 1Within operating temperature and SOP.

· 2Excluding Connectors.
